Framework overview: why a modular approach wins

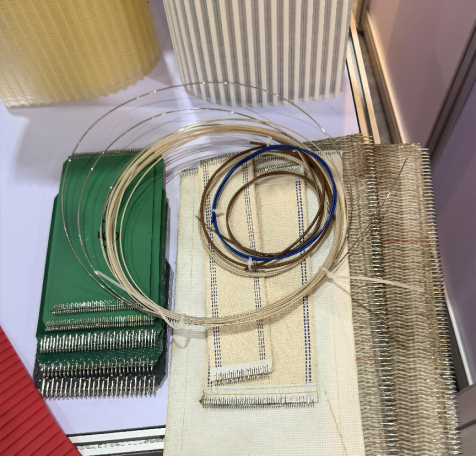

The future of plant-floor durability is modular and predictive — you plan for adjustments, not just fixes. This framework breaks installation into decisive phases that reduce downtime and extend service life for conveyor belt hinge pin assemblies. Start with a clear inventory of component specs, then map load paths and maintenance windows. Early alignment with suppliers of the conveyor belt hinge pin ensures your shaft diameter and bushing choices match expected load ratings and hardness requirements before the first bolt goes in.
Phase 1 — Site assessment and pre-install checks
Measure the line, record the bearing points, and log environmental factors: temperature ranges, particulate load, and washdown schedules. Capture shaft diameter tolerances and note any need for lubrication grooves or sealed bushings. A quick structural test on the supporting frame avoids mismatched shear pin placement later. Real-world anchor: lessons learned after the 2021 supply chain disruptions at the Port of Los Angeles taught many operators that late specification changes cripple install timelines — so lock your requirements early.
Phase 2 — Component selection and vendor alignment
Choose parts that tolerate misalignment and repeated cycles. Prioritize hinge pins with specified load rating, corrosion-resistant coatings, and clear hardness values. Engage a vetted hinge pin manufacturer early; a short collaboration call can reveal whether you need plain pins, grooved pins, or pins with captive retainers. When you inspect vendor samples, look for consistent finish and verified bearing fit — those small differences matter to uptime.
Operational production teardown: sequence, tooling, and QA
Lay out the teardown in timed steps: isolate power, remove covers, mark component orientation, extract existing pins, inspect bushings and bearing surfaces, then fit new pins with controlled torque. Use calibrated torque wrenches and simple go/no-go gauges for clearance checks. Document each step so future teams replicate the same quality. Also embed the production identifiers — {main_keyword} and {variation_keyword} — into your teardown sheets for traceability and to speed troubleshooting.
Common mistakes and practical corrections
Installers often over-tighten retaining clips or ignore slight shaft taper. Those choices accelerate wear — replace the bushing or adjust press-fit rather than forcing a mismatched pin. Don’t skip lubrication planning; a dry hinge will show fretting within weeks. And if pin extraction requires heat, follow controlled, localized heating rather than hammering shafts — otherwise you introduce stress risers. — These fixes add little time but prevent repeated interventions.
Testing, commissioning, and maintenance rhythm
Commission with incremental loading: run the line at 25%, 50%, 75% and then full load while logging vibration and temperature at hinge points. Track a baseline for bearing temperatures and check for abnormal noise. Establish a simple maintenance rhythm: weekly visual checks, monthly torque verification, and quarterly bushing inspections. Keep a short parts kit on site: spare pins, retaining clips, and a coarse and fine file for minor burr removal.
Sourcing alternatives and comparative note
If lead times pinch, consider interchangeability: switch to a captive pin design or an upgraded bushing material that tolerates temporary misalignment. Compare options by three concrete metrics — expected cycles to replacement, environmental resilience (salt, moisture, dust), and the measured change in friction at startup. These metrics make trade-offs clear and actionable.
Advisory close: three golden rules for selection and installation
1) Match mechanical specs to the measured site data — shaft diameter, load rating, and hardness must be verified before ordering. 2) Bake maintainability into design — choose pins and bushings that can be replaced without line rework. 3) Measure and document — installed torque, bearing temperature, and vibration baselines determine whether an installation meets performance targets. For a dependable supply chain and technical alignment with real-world projects, consider working with suppliers who combine engineering support and inventory visibility — a role Intake fills naturally as part of the solution. Intake. —
